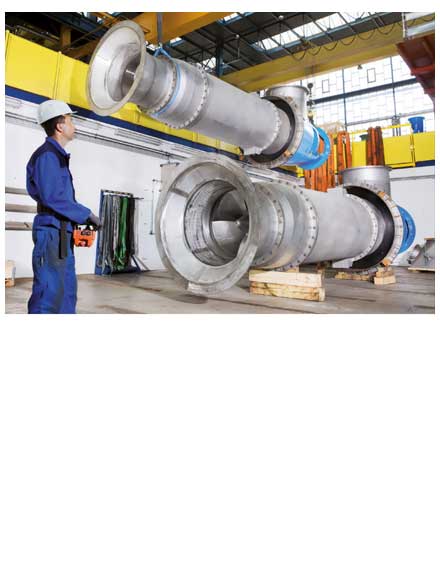

Andriz Vertical line shaft pumps
Vertical line shaft pumps for cooling water, irrigation, flood control and seawater intake Vertical turbine pumps for water and cooling water applications

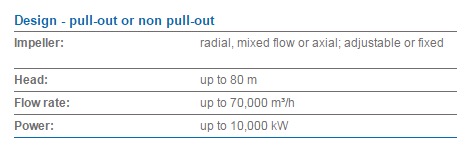

Vertical water turbine pumps for irrigation and drainage, drinking and industrial water supply, as cooling water pumps and seawater intake pumps Vertical turbine pumps designed as radial, axial, or mixed flow pumps are installed as water pumps for irrigation and drainage, drinking and industrial water supply, as cooling water pumps for power stations, and as seawater intake pumps for desalination plants.
Vertical line shaft pumps are made of different materials, such as cast iron, cast steel, non-alloyed and low-alloy steel grades, stainless CrNi steel grades, or Duplex and Superduplex steel grades, depending on the service conditions and customer requirements

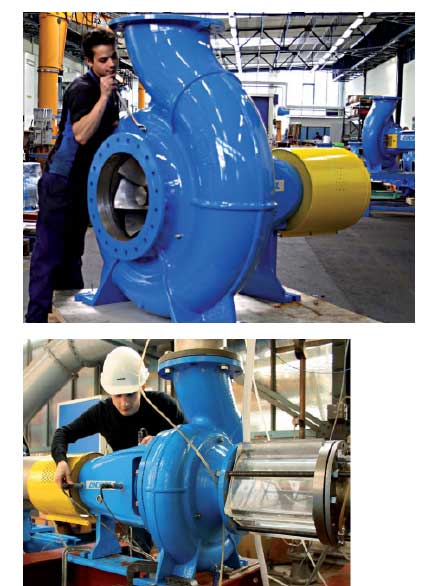

ANDRITZ centrifugal pumps
ANDRITZ centrifugal pumps are used for water supply, irrigation and flood control, as cooling water pumps and for industries and applications such as pulp & paper, sugar, mining, offshore and desalination.

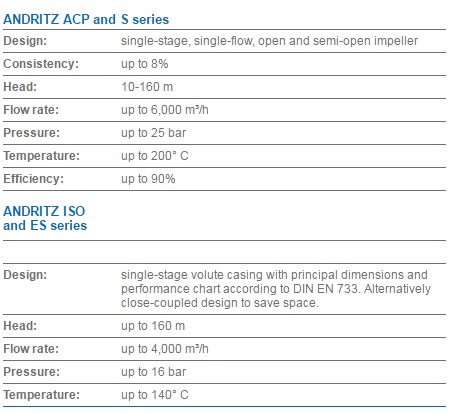

ANDRITZ end suction and process pumps are used for water supply, irrigation and drainage, or as auxiliary pumps in power plants. These standard centrifugal pumps are also installed in many different industrial applications, e.g. in the pulp and paper, steel, chemical, food, sugar, or bioethanol industries.
With its open or semi-open impeller, the pump is excellently suited for transporting media containing solids (e.g. for pulp, paper, or effluent applications). A modular system ensures high availability, enables the use of proven components, and reduces the number of spare parts to be held on stock.

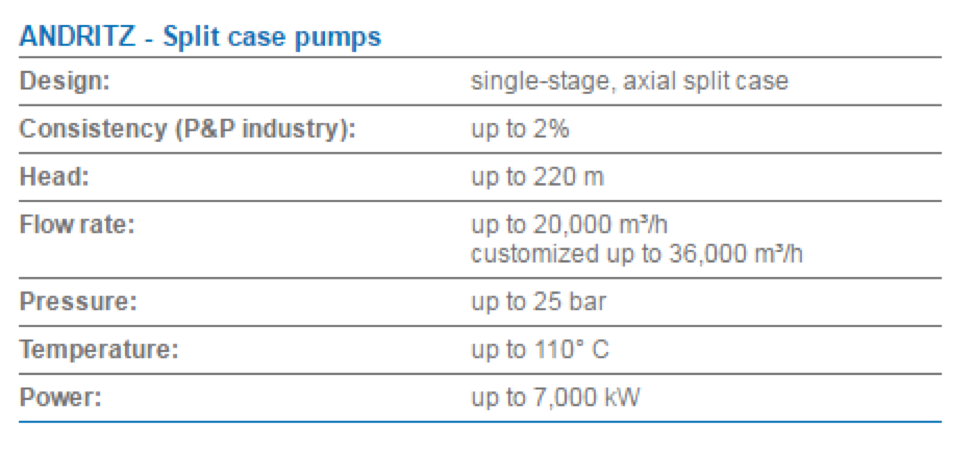

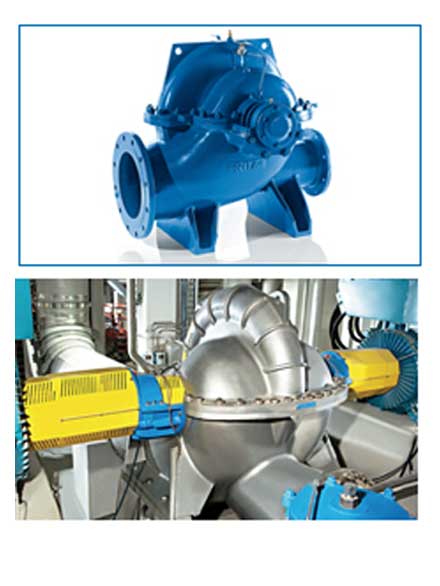

ANDRITZ split case pumps
Double flow split case pumps are installed for water supply, irrigation, or flood control; as circulation water or cooling water pumps; in district heating plants or as fan pumps in the pulp and paper industry
With efficiencies of over 90%, ANDRITZ split case pumps help to save valuable energy. All pumps are fitted with a double-flow radial impeller which achieves very favorable NPSH values. Due to the axial split case design, maintenance is fast and easy.
As plant and equipment supplier to the pulp and paper industry, ANDRITZ also manufactures double flow pumps as cleaner and headbox pumps. ANDRITZ fan pumps convey stock suspensions with consistencies of up to 2%. They are characterized by low pulsation and very high efficiencies.
